MAX7219 7-Segment Display

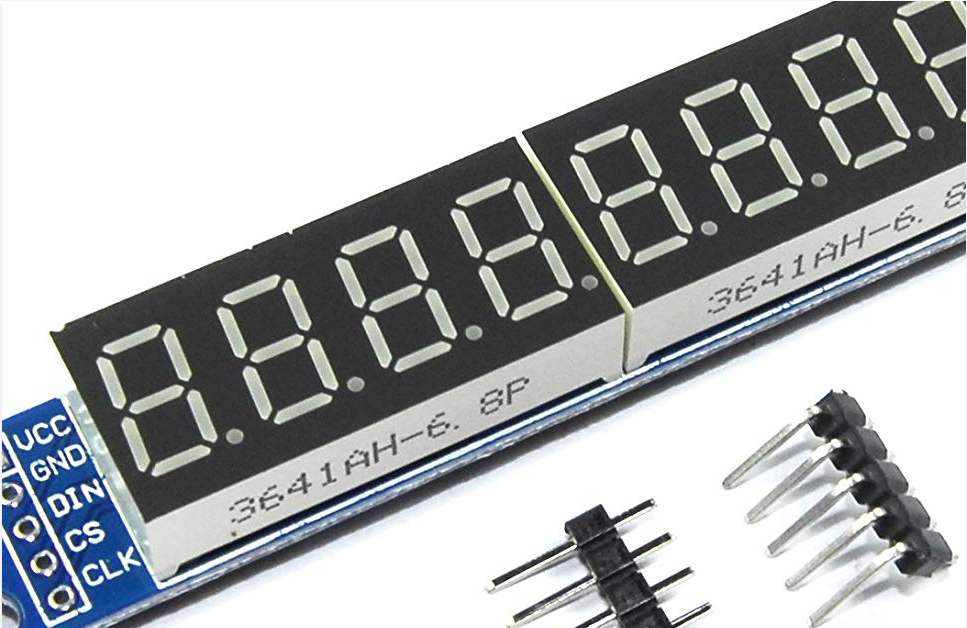

Voorbeeld code om het MAX7219 7 segment 8 digit display te testen voor de Proton picbasic compiler.
De MAX7219 wordt aangesloten met 1 data lijn (Din), 1 klok lijn (Clk) en 1 load lijn (CS) (3 draads). Data en klok lijn worden parallel aan eventueel meerdere displays aangesloten. De load lijnen zijn per display.
Deze code maakt het normale “print” commando dat gebruikt wordt bij LCD (Hitachi 44780 controller) displays bruikbaar voor de MAX7219.
Met deze code kunnen alleen cijfers 0-9 en de karakters H, h, E, e, L, l, P, p, – en . geprint worden.
Indien een . geprint wordt zal deze weergegeven worden op de decimale punt locatie van het vorige karakter.(neemt dus geen extra digit in)
Print at 1,1, “12.34.56.16” (11 karakters) geeft:
Tot maximaal 4 MAX7219 displays zijn te benaderen met het “print” commando.
Je geeft dit aan door de cursor te positioneren met “At”.
Print At 1,8, “1” zal een “1” printen op het 1e display op het 8e digit (rechts)
Print At 2,1, “1” zal een “1” printen op het 2e display op het 1e digit (links)
Indien je geen “At” gebruikt zal de volgende print opdracht verder gaan waar de cursor gebleven was.
De onderstaande code is bedoeld voor 2 MAX7219 displays, wil je meer dan
zullen Display3 en Display4 ook gedefinieerd moeten worden met de
bijbehorende load pinnen.
Demo code:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 | '**************************************************************** '* Name : MAX7219 7 segment 8 digit print test * '* Author : Knutselaar.eu * '* Notice : Copyright (c) 2019 * '* : All Rights Reserved * '* Date : 29-5-2019 * '* Compiler: 3.5.8.6 (Proton picbasic) * '* Version : 1.0 * '* Notes : Free to use demo software * '* : Not for commercial use * '**************************************************************** Device = 18F25K22 Xtal = 8 '76543210 OSCCON = %01100110 ;8 mhz,int-osc ANSELB = %00000000 ;Port B Digital TRISB = %00000011 ;B7-2 output Symbol Seg7Dta = LATB.7 ' MAX7219 data pin (DIN) (use PORTB.5 for 16Fxxxx devices) Symbol Seg7Clk = LATB.6 ' MAX7219 clock pin (CLK) Symbol Seg7Load = LATB.5 ' MAX7219 load pin (CS) 1e display $define Display2 Symbol Seg7Load2 = LATB.4 ' MAX7219 load pin 2e display ''$define Display3 'Symbol Seg7Load3 = LATB.3 ' MAX7219 load pin 3e display ''$define Display4 ''Symbol Seg7Load4 = LATB.2 ' MAX7219 load pin 4e display Dim test As Byte Clear Include "MAX7219PrintCommand.inc" ' sent "print" output to MAX7219 7 segment display controller via ISP Print At 1,1, "12345678" loop: DelayMS 2000 Print Cls Print At 1,7, "1.2" ;with decimal point For test = 16 To 32 ;this demonstrate 16 step light intensity DelayMS 500 Print $FE, test Print At 1,7, Dec2 test - 16 Next test DelayMS 1000 Print At 2,1, "3.4" ;second display (will print on the first if Display2 is NOT defined) For test = 16 To 32 ;this demonstrate 16 step light intensity on the second display DelayMS 500 ;it acts on th 2e display now because that is the latest accessed by the "print" command. Print $FE, test Print At 2,7, Dec2 test - 16 Next test ;DelayMS 1000 ;Print At 3,7, "56" ;in case you hook up a third display ;DelayMS 1000 ;Print At 4,1, "78" ;in case you hook up a fourth display DelayMS 1000 Print At 1,1, " -help " ;supported non number signs DelayMS 2000 Print $FE, 3 ;this will set the last accessed dispay (in this case the first)into standby (dark) DelayMS 2000 Print $FE, 4 ;this will set the last accessed dispay into normal mode (on) ;can be used for blink GoTo loop Config_Start FOSC = INTIO67 ;Internal oscillator block, port function on RA6 and RA7 FCMEN = Off ;Fail-Safe Clock Monitor disabled IESO = Off ;internal external switchover mode PWRTEN = On ;power-up timer BOREN = On ;brown-out reset BORV = 190 ;brown-out reset value (2,7V) WDTEN = SWON ;watchdog timer WDTPS = 128 ;1:128 WDT prescalar PBADEN = Off ;analog port B<4:0> STVREN = On ;stack overflow reset LVP = Off ;low voltage programming XINST = Off ;Instruction set extension and Indexed Addressing mode disabled (Legacy mode) Debug = Off ;no debug Config_End |
Incude file: “MAX7219PrintCommand.inc”
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 | '***************************************************************************************************************** '* Name : MAX7219PrintCommand.inc * '* Purpose : allow Proton PIC Basic Print commands to access the MAX7219 7 segment 8 digit display * '* Author : Knutselaar.eu * '* Notice : Copyright (c) 2019 * '* : All Rights Reserved * '* Date : 29/05/2019 * '* Compiler: 3.5.8.6 * '* Version : 1.0 * '* Notes : Free to use demo software * '* : Not for commercial use * '* : This programm uses the MAX7219 in BCD decode mode * '* * '* Print $FE,3 set the MAX7219 into standby mode (low power, display off) * '* Print $FE,4 set the MAX7219 into normal mode (can be used for blinking purpose also) * '* Print $FE,16 to Print $FE,31 set the brightness of the display in 16 staps) * ''**************************************************************************************************************** #Disable Print ;Disable the Proton Print command Symbol SegmentQuantity = 7 ;aantal digits - 1 (0 telt ook mee) Symbol SegmentBrightness = 8 ;brightness 0 - 15 Dim seg7Print_Initialised As Byte = 0 Dim seg7Print_Store As Byte Dim seg7Print_Data As Byte Dim seg7Print_Flag As Byte Dim seg7Register As Byte Dim seg7R_Val As Byte Dim seg7DisplayNr As Byte = 1 ' The following Variables should be defined in your main programm ' Symbol Seg7Dta = LATB.7 ' MAX7219 data pin (use PORTB.5 for 16Fxxxx devices) ' Symbol Seg7Clk = LATB.6 ' MAX7219 clock pin ' Symbol Seg7Load = LATB.5 ' MAX7219 load pin ' Symbol Seg7Load2 = LATB.4 ' MAX7219 load pin only for 2th display ' Symbol Seg7Load3 = LATB.3 ' MAX7219 load pin only For 3th display ' Symbol Seg7Load4 = LATB.2 ' MAX7219 load pin only For 4th display GoTo Seg7PrintCommand_End ;**************************************************************************************************************** @Print ; assembler Print redirect Wreg_Byte seg7Print_Data ; save the W Register seg7Print_Store = seg7Print_Data If seg7Print_Initialised = 0 Then ; initialize seg7Register = 11 ' Point to the Scan Register seg7R_Val = SegmentQuantity ' Number of segments seg7DisplayNr = 1 GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 $ifdef Display2 seg7DisplayNr = 2 ' Init 2e display GoSub Seg7Transfer $endif $ifdef Display3 seg7DisplayNr = 3 ' Init 3e display GoSub Seg7Transfer $endif $ifdef Display4 seg7DisplayNr = 4 ' Init 3e display GoSub Seg7Transfer $endif seg7Register = 10 ' Point to the Luminance Register seg7R_Val = SegmentBrightness ' Value for Brightness seg7DisplayNr = 1 GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 $ifdef Display2 seg7DisplayNr = 2 ' Init 2e display GoSub Seg7Transfer $endif $ifdef Display3 seg7DisplayNr = 3 ' Init 3e display GoSub Seg7Transfer $endif $ifdef Display4 seg7DisplayNr = 4 ' Init 3e display GoSub Seg7Transfer $endif seg7Register = 9 ' Point to BCD Decode Register seg7R_Val = %11111111 ' Decode all 8 digits seg7DisplayNr = 1 GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 $ifdef Display2 seg7DisplayNr = 2 ' Init 2e display GoSub Seg7Transfer $endif $ifdef Display3 seg7DisplayNr = 3 ' Init 3e display GoSub Seg7Transfer $endif $ifdef Display4 seg7DisplayNr = 4 ' Init 3e display GoSub Seg7Transfer $endif seg7Register = 12 ' Point to the Switch Register seg7R_Val = 1 ' Set to One, (switches the display ON) seg7DisplayNr = 1 GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 $ifdef Display2 seg7DisplayNr = 2 ' Init 2e display GoSub Seg7Transfer $endif $ifdef Display3 seg7DisplayNr = 3 ' Init 3e display GoSub Seg7Transfer $endif $ifdef Display4 seg7DisplayNr = 4 ' Init 3e display GoSub Seg7Transfer $endif seg7Register = 15 ' Point to the Test Register seg7R_Val = 0 ' Reset to Zero, (turns off Test mode) seg7DisplayNr = 1 GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 $ifdef Display2 seg7DisplayNr = 2 ' Init 2e display GoSub Seg7Transfer $endif $ifdef Display3 seg7DisplayNr = 3 ' Init 3e display GoSub Seg7Transfer $endif $ifdef Display4 seg7DisplayNr = 4 ' Init 3e display GoSub Seg7Transfer $endif GoSub Seg7Blank ' Blank (all) display(s) Set seg7Print_Initialised ; Indicate that the LCD is initialized seg7Register = SegmentQuantity + 1 ; shift to the left seg7Print_Flag = 1 ; data / command flag EndIf seg7Print_Data = seg7Print_Store If seg7Print_Data = 0xFE Then ; it is a command header seg7Print_Flag = 0 ; clear a flag so we know the next byte will be a command Else If seg7Print_Flag = 0 Then ; command byte (At, Cls, standby, brightness) Select seg7Print_Store Case 1 GoSub Seg7Blank ; blank Cls seg7Register = SegmentQuantity + 1 ; reset position to left Case 3 seg7Register = 12 ' Point to the Switch Register seg7R_Val = 0 ' Set to Zero, (switches the display OFF) GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 Case 4 seg7Register = 12 ' Point to the Switch Register seg7R_Val = 1 ' Set to One, (switches the display ON) GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 Case 16 To 31 seg7Register = 10 ' Point to the Luminance Register seg7R_Val = seg7Print_Store - 16 ' Value for Brightness GoSub Seg7Transfer ' Transfer this 16-bit Word to the MAX7219 Case 128 To 135 ; set position 1-8 for line 1 (print at 1,x) seg7DisplayNr = 1 seg7Register = (SegmentQuantity + 1) - (seg7Print_Store - 128) Case 192 To 205 ; set position 1-8 for 2th display (Print At 2,x) $ifdef Display2 seg7DisplayNr = 2 $endif seg7Register = (SegmentQuantity + 1) - (seg7Print_Store - 192) Case 148 To 155 $ifdef Display3 ; set position 1-8 for 3th display (Print At 3,x) seg7DisplayNr = 3 $endif seg7Register = (SegmentQuantity + 1) - (seg7Print_Store - 148) Case 212 To 219 ; set position 1-8 for 4th display (Print At 4,x) $ifdef Display4 seg7DisplayNr = 4 $endif seg7Register = (SegmentQuantity + 1) - (seg7Print_Store - 212) End Select Else ; data byte Select seg7Print_Store Case 32 ; space seg7R_Val = 15 Case 45 ; minus sign seg7R_Val = 10 Case 46 ; dot (this is a reprint of the previous character together with the dot) seg7Register = seg7Register + 1 ; shift back (left) seg7R_Val = seg7R_Val + 128 ; 7th digit (128) of the byte will set te decimal point. Case 69, 101 ; E, e seg7R_Val = 11 Case 72, 104 ; H, h seg7R_Val = 12 Case 76, 108 ; L, l seg7R_Val = 13 Case 80, 112 ; P, p seg7R_Val = 14 Case 48 To 57 ; 0 - 9 seg7R_Val = seg7Print_Store Case Else ;seg7R_Val = seg7Print_Store ;seg7Register = seg7Register - 1 ; ingnore non supported characters ;or ;seg7R_Val = 15 ; blank non supported characters ;or ;seg7R_Val = 15 + 128 ; blank with dot non sopprted characters End Select GoSub Seg7Transfer seg7Register = seg7Register - 1 ; position shift to the next (right) End If seg7Print_Flag = 1 ; set the flag so the next byte will be send as Data End If Byte_Wreg seg7Print_Data ; restore the W register Return ' **************************************************************************** ' ** S U B R O U T I N E S ** ' **************************************************************************** Seg7Transfer: SHOut Seg7Dta,Seg7Clk,MsbFirst,[seg7Register,seg7R_Val] ' Shift Out the Register first, then the data Select seg7DisplayNr Case 1 High Seg7Load ' The data is now acted upon DelayUS 2 ' A small delay to ensure correct clocking times Low Seg7Load Case 2 $ifdef Display2 High Seg7Load2 ' The data is now acted upon DelayUS 2 ' A small delay to ensure correct clocking times Low Seg7Load2 $endif Case 3 $ifdef Display3 High Seg7Load3 ' The data is now acted upon DelayUS 2 ' A small delay to ensure correct clocking times Low Seg7Load3 $endif Case 4 $ifdef Display4 High Seg7Load4 ' The data is now acted upon DelayUS 2 ' A small delay to ensure correct clocking times Low Seg7Load4 $endif End Select Return ' Exit from Subroutine Seg7Blank: For seg7Register = 1 To SegmentQuantity + 1 'blank all digit's on all displays SHOut Seg7Dta,Seg7Clk,MsbFirst,[seg7Register,15] High Seg7Load $ifdef Display2 High Seg7Load2 $endif $ifdef Display3 High Seg7Load3 $endif $ifdef Display4 High Seg7Load4 $endif DelayUS 2 Low Seg7Load $ifdef Display2 Low Seg7Load2 $endif $ifdef Display3 Low Seg7Load3 $endif $ifdef Display4 Low Seg7Load4 $endif DelayUS 2 Next seg7Register Return Seg7PrintCommand_End: |
